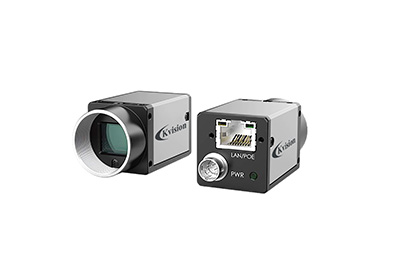

CK-S Series Area Scan Camera
CKVision offers a series of industrial cameras with resolutions from 0.3MP to 20MP, supporting GigE and USB interfaces. Equipped with high-quality imaging chips, they deliver excellent image quality, meeting needs for positioning guidance, measurement, defect detection, code reading, and OCR recognition.
CK-S Series Area Scan Camera
CK-S Series 2nd-gen industrial cameras deliver tech breakthroughs in design, R&D and production control for enhanced user experience. Rich advanced ISP functions are added to ease users’ image processing workload.
Enhanced Camera Features
-
Stronger
-
Stable
-
Longer
-
Lower
-
Cost-effective

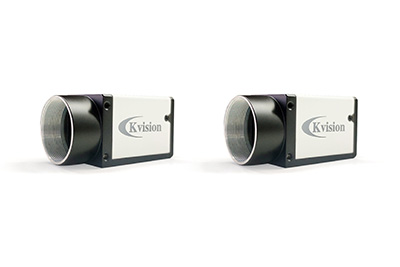

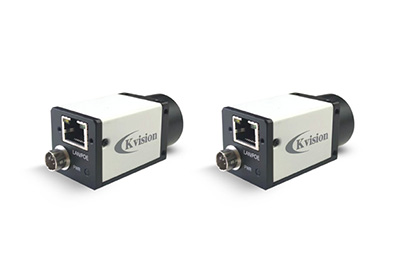

Supports Four-Side Mounting for Versatile Scenarios
Supports four-side mounting, higher assembly precision, wider voltage range compatibility, and broader operating temperatures, adapting to demanding visual applications.
Sony Chips with Multiple Smart Algorithms Integrated algorithms
Lossless compression, 2D noise reduction, lens shadow correction, and color correction matrix (CCM) enhance image quality while maintaining high frame rates.
PRODUCT LIST
| Product model | Sensor Model | Sensor Type | Shutter Type | Resolution | Max Frame Rate | Mono/Color | Data Interface | Lens Interface |
|---|---|---|---|---|---|---|---|---|
| CK-S40MI-125GS | IMX297 | CMOS | Global | 720×540 | 125 fps | GigE | C-Mount | |
| CK-S40CI-125GS | IMX297 | CMOS | Global | 720×540 | 125 fps | GigE | C-Mount | |
| CK-S160MI-65GS | IMX296 | CMOS | Global | 1440×1080 | 65 fps | GigE | C-Mount | |
| CK-S160CI-65GS | IMX296 | CMOS | Global | 1440×1080 | 65 fps | GigE | C-Mount | |
| CK-S500MI-24GS | IMX264 | CMOS | Global | 2448×2048 | 24.2 fps | GigE | C-Mount | |
| CK-S500CI-24GS | IMX264 | CMOS | Global | 2448×2048 | 24.2 fps | GigE | C-Mount | |
| CK-S600MI-19RS | IMX178 | CMOS | Rolling | 3072×2048 | 19.1 fps | GigE | C-Mount | |
| CK-S600CI-19RS | IMX178 | CMOS | Rolling | 3072×2048 | 19.1 fps | GigE | C-Mount | |
| CK-S2000MI-6RS | IMX183 | CMOS | Rolling | 5472×3648 | 5.9 fps | GigE | C-Mount | |
| CK-S2000CI-6RS | IMX183 | CMOS | Rolling | 5472×3648 | 5.9 fps | GigE | C-Mount |
