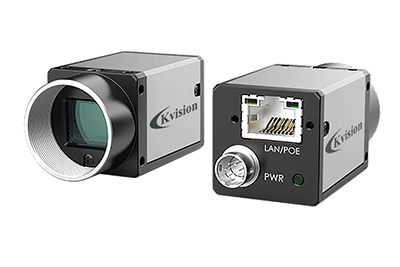

CK-H1200CI-10GS
CK-H1200CI-10GS camera adopts Sony® IMX304 sensor to provide high-quality images. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 9.9 fps in full resolution.
Features
Dimensions
Specs
Downloads
- Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on theseprotocol and standard.
Sensor:
| Model | Product Model | CK-H1200CI-10GS |
| Type | 12MP Area Scan Camera, GigE, IMX304, Mono, V4 | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX304 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1.1″ | |
| Resolution | 4096 × 3000 | |
| Max. frame rate | 9.9 fps @ 4096 × 3000 Bayer RG 8 | |
| Dynamic range | 70.4 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
|
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 3.0 W @ 12 VDC | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″) | |
| Weight | 100 g (0.2 lb.) | |
| Ingress protection | IP 40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | CKVisionBuilder or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux | |
| Compatibility | GigE Vision 2.0, GenlCam |
