CK-H500MU-74GS

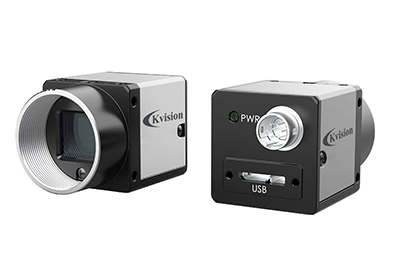

CK-H500MU-74GS camera adopts Sony® IMX250 sensor to provide high-quality images. It uses USB3.0 interface to transmit non-compressed images in real time, and its max. frame rate can reach 74.1 fps in full resolution.
Features

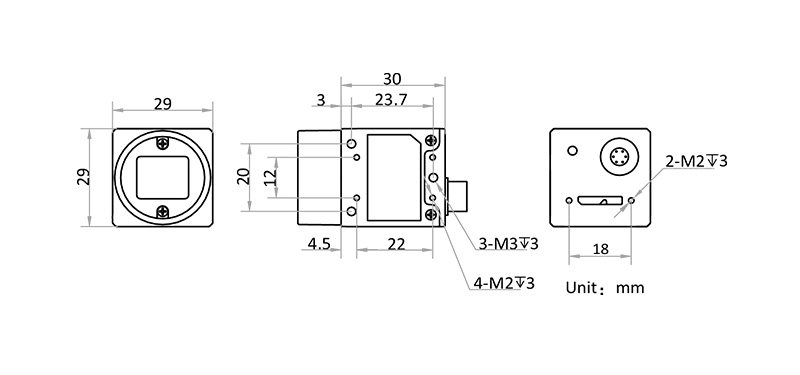

Dimensions
Specs
Downloads
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports LSC, Sequencer, Super Palette, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Sensor：
| Model | Product Model | CK-H500MU-74GS |
| Type | 5MP Area Scan Camera, USB3, IMX250, Mono, V4 | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX250 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 2/3″ | |
| Resolution | 2448 × 2048 | |
| Max. frame rate | 74.1 fps @ 2448 × 2048 Mono 8 | |
| Dynamic range | 71 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec | |
| Mono/color | Mono | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 3.3 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 80 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | CKVisionBuilder or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux | |
| Compatibility | USB3 Vision, GenICam |
