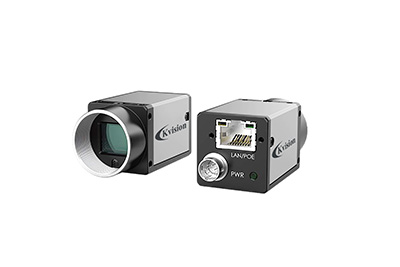

CK-S2000MI-6RS
With GigE interface, CK-S2000MI-6RS camera adopts Sony®IMX183 sensor to provide high-quality images and transmit images in real time, and its max. frame rate can reach 5.9 fps in full resolution.
Features
Dimensions
Specs
Downloads
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports multiple ISP functions like CCM to provide highquality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

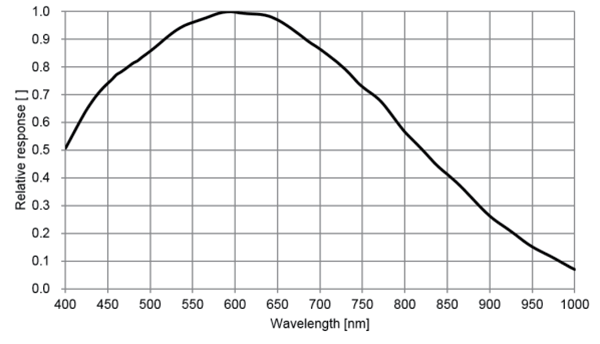

Sensor:
| Model | Product Model | CK-S2000MI-6RS |
| Type | 20MP Area Scan Camera,GigE,IMX183,Mono,Basic | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX183 | |
| Pixel size | 2.4 μm × 2.4 μm | |
| Sensor size | 1″ | |
| Resolution | 5472 × 3648 | |
| Max. frame rate | 5.9 fps @ 5472 × 3648 | |
| SNR | 41.5 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 46 μs to 2.5 sec | |
| Exposure mode | Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode | |
| Mono | Mono | |
| Pixel format | Mono 8/10/10p/12/12p | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.4 W@12 VDC | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 100 g (0.22 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | CKVisionBuilder or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux | |
| Compatibility | GigE Vision V2.0, GenICam |
