CK-U600MI-19RS
CK-U600MI-19RS camera adopts Sony® IMX178 sensor to provide high-quality images. It uses GigE interface to transmit noncompressed images in real time, and its max. frame rate can reach 19.1 fps in full resolution.
Features

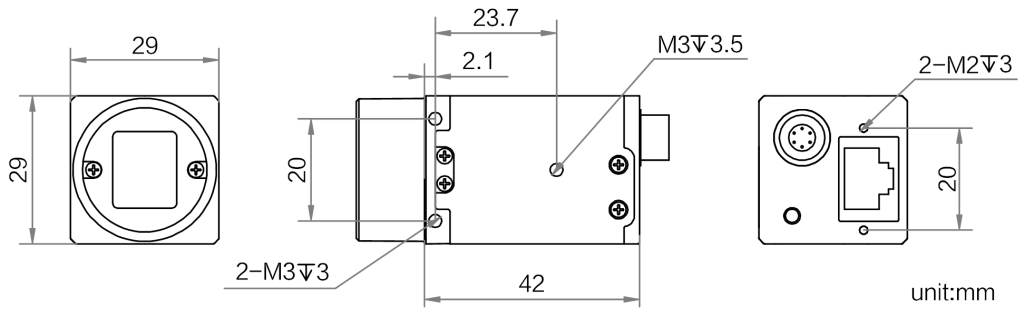

Dimensions
Specs
Downloads
- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time,etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Sensor：
| Model | Product Model | CK-U600MI-19RS |
| Type | 6MP Area Scan Camera, GigE, IMX178, Mono, with PoE | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 | |
| Pixel size | 2.4 μm × 2.4 μm | |
| Sensor size | 1/1.8″ | |
| Resolution | 3072 × 2048 | |
| Max. frame rate | 19.1 fps @3072 × 2048 Mono 8 | |
| Dynamic range | 71.3 dB | |
| SNR | 41.3 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 52 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, PoE is optional | |
| Power consumption | Typ. 1.7 W@12 VDC | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″) | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | CKVisionBuilder or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
