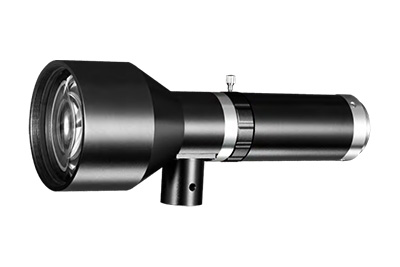

CK-SDTCA230-37C
- Large relative aperture, very close to the diffraction limit image quality, matching high-pixel cameras
- Optionally equipped with an adjustable diaphragm, which facilitates the use of a balanced depth of field and resolution
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of view FOV(Φmm) | 37 |
| Magnification β(x) | 0.300 |
| Working distance(mm) | 110±2 |
| CCD size (Φmm) | 11.0(2/3″) |
| F/# | 3.75 |
| MTF30(lp/mm) | >220 |
| Depth of field (mm) | ±1.7@F3.75 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 273±2 |
| Mechanical parameters | |
| Camera interface | C |
| Total length of the lens (mm) | 145.5 |
| Net weight(kg) | 0.4 |
| Variable aperture | Yes |
| Whether coaxial light | No |
| Field of View (mm x mm) | |
| 1/1.8″ EV76C570 (7.2×5.4) | 24.0×18.0 |
| 1/1.7″ IMX226 (7.5×5.6) | 25.0×18.7 |
| 2/3″ IMX250/264 (8.45×7.1) | 28.2×23.7 |
