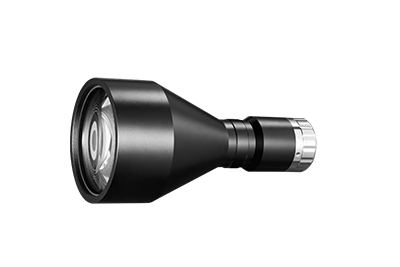

CK-SDTCM110-64-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 64 |
| Magnification β(x) | 0.258 |
| Working distance (mm) | 189±3 |
| CCD size (Φmm) | 16.6(1″) |
| F/# | 9.8 |
| MTF30(lp/mm) | >85 |
| Depth of field (mm) | ±9.6@F16 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 373±3 |
| Mechanical parameters | |
| Camera interface | C |
| Total length of the lens (mm) | 166.5 |
| Net weight(kg) | 0.9 |
| Field of View (mm x mm) | |
| 1″ PYTHON 5000(12.43×9.83) | 48.2×38.1 |
| 1″ IMX255(14.19×7.51) | 55.0×29.1 |
| 1″ IMX183(13.13×8.76) | 50.9×34.0 |
