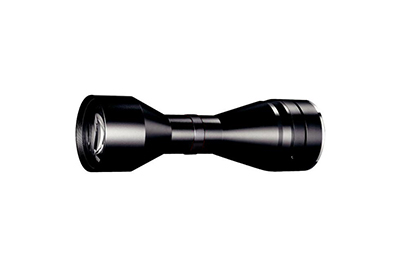

CK-SDTCM35F-42-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentricity, ultra-low distortion, ultra-large depth of field, meet the needs of high-end systems requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 42 |
| Magnification β(x) | 1.048 |
| Working distance (mm) | 118±3 |
| CCD size (Φmm) | 44(35mmFull) |
| F/# | 17.2 |
| MTF30(lp/mm) | >45 |
| Depth of field (mm) | ±0.7@F20 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 366±3 |
| Mechanical parameters | |
| Camera interface | F or Other |
| Total lens length (mm) | 201.1 |
| Net weight (kg) | 0.8 |
| Field of view (mm x mm) | |
| CMV50000 (36.43×27.62) | 34.8×26.4 |
| KAI29050/2 (36.17×24.11) | 34.5×23.0 |
| KAI43142 (36.18×24.12) | 34.5×23.0 |
