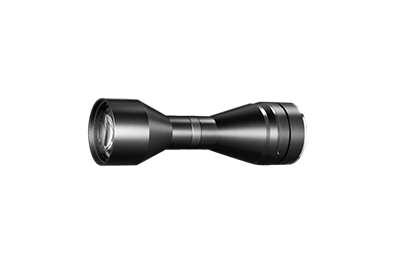

CK-SDTCM35F-72-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentricity, ultra-low distortion, ultra-large depth of field, meet the needs of high-end systems requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 72 |
| Magnification β(x) | 0.611 |
| Working distance (mm) | 178±3 |
| CCD size (Φmm) | 44(35mmFul) |
| F/# | 12.9 |
| MTF30(lp/mm) | >65 |
| Depth of field (mm) | ±2.1@F20 |
| Image distortion (%max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 494±3 |
| Mechanical parameters | |
| Camera interface | F or Other |
| Total lens length (mm) | 296.6 |
| Net weight (kg) | 1.4 |
| Field of View (mm x mm) | |
| CMV50000(36.43×27.62) | 59.6×45.2 |
| KAI29050/2(36.17×24.1) | 59.2×39.5 |
| KAI43142 (36.18×24.12) | 59.2×39.5 |
