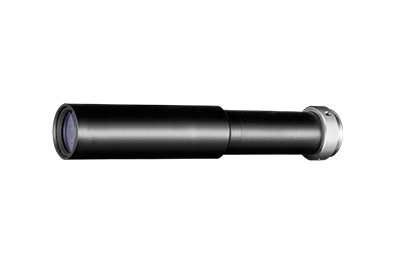

CK-SWWH05-510AT
- Equipped with variable light bar specifications to achieve the best balance between resolution and depth of field
- Widely used in high-precision visual positioning and other occasions
Specifications
Dimensions
Downloads
| Optical parameters | |
| Magnification β(x) | 0.5 |
| Working distance (mm) | 510±3 |
| Image Square Maximum CCD Size (Φmm) | 9.0(1/1.8″) |
| F/# | 14.2 |
| Telecentricity (° max) | / |
| Image square distortion (%) | <0.1 |
| Numerical aperture NA | 0.0174 |
| Object resolution (um) | 19.3 |
| Object depth of field (mm) | 4.5 |
| Mechanical parameters | |
| Camera interface | C |
| Total lens length (mm) | 163.5 |
| Whether coaxial light / Dimmable bar | No/No |
| Viewable range (mm x mm) | |
| 1/3″(4.8×3.6) | 9.6×7.2 |
| 1/2″(6.4×4.8) | 12.8×9.6 |
| 1/1.8″(7.13×5.37) | 14.3×10.7 |
