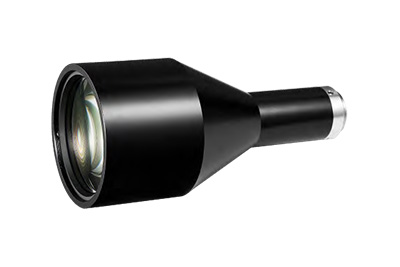

CK-SWWK022-200-230
- Built-in coaxial optical specifications are particularly suitable for wafers, glass devices, and display devices；
- Can be quickly customized to meet different camera specifications, as well as magnification, working distance, and depth of field requirements.
Specifications
Dimensions
Downloads
| Optical parameters | |
| Magnification β(x) | 0.22 |
| Working distance (mm) | 200±3 |
| CCD size (Φmm) | 11(2/3″) |
| F/# | 10 |
| MTF30 (lp/mm) | >80 |
| Object Depth of Field DoF(mm) | ±8.3@F10 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Mechanical parameters | |
| Camera interface | C |
| Overall lens length (mm) | 150.0 |
| Whether the coaxial light | No |
| Net weight (kg) | 0.436 |
| Viewable range (mm x mm) | |
| 1/1.8″ EV76C570 (7.2×5.4) | 32.7×24.5 |
| 1/1.7″ IMX226 (7.5×5.6)
2/3″ IMX250/264 (8.45×7.1) |
34.1×25.5
38.4×32.3 |
