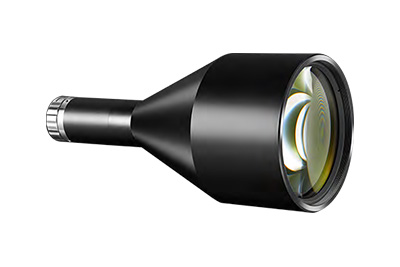

CK-SWWK022-220-111
- Built-in coaxial optical specifications are particularly suitable for wafers, glass devices, and display devices；
- Can be quickly customized to meet different camera specifications, as well as magnification, working
Specifications
Dimensions
Downloads
| Optical parameters | |
| Magnification β(x) | 0.22 |
| Working distance (mm) | 220±3 |
| CCD size (Φmm) | 18.0(1.1″) |
| F/# | 8 |
| MTF30 (lp/mm) | >110 |
| Object Depth of Field DoF(mm) | ±6.6@F8 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.15 |
| Mechanical parameters | |
| Camera interface | C |
| Overall lens length (mm) | 232.9 |
| Whether the coaxial light | No |
| Viewable range (mm x mm) | |
| 1″ IMX183 (13.13×8.76) | 59.7×39.8 |
| 1.1″ IMX253 (14.19×10.38) | 64.5×47.2 |
