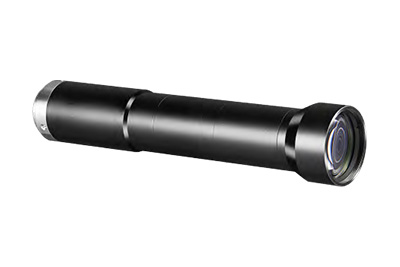

CK-SWWK20-110-111
- Built-in coaxial optical specifications are particularly suitable for wafers, glass devices, and display devices；
- Can be quickly customized to meet different camera specifications, as well as magnification, working distance, and depth of field requirements.
Specifications
Dimensions
Downloads
| Optical parameters | |
| Magnification β(x) | 2.0 |
| Working distance (mm) | 110±2 |
| CCD size (Φmm) | 18.0(1.1″) |
| F/# | 13.5 |
| MTF30 (lp/mm) | >60 |
| Object Depth of Field DoF(mm) | ±0.14@F13.5 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Mechanical parameters | |
| Camera interface | C |
| Overall lens length (mm) | 133.2 |
| Whether the coaxial light | No |
| Viewable range (mm x mm) | |
| 1″ IMX183 (13.13×8.76) | 6.6×4.4 |
| 1.1″ IMX253 (14.19×10.38) | 7.1×5.2 |
