Square lights

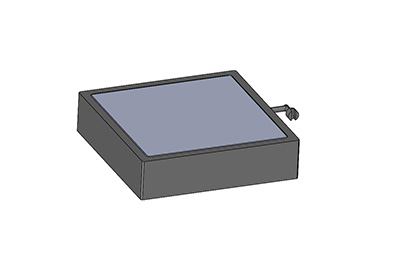

CK-QND120 is a square lights that emits uniformly diffused light at a low angle from four directions. Specifically designed for square workpieces, it enables precise inspection of edge contours while effectively preventing glare. Personalized customization is available to meet customer-specific requirements.

Specifications
Dimensions
Downloads
Model CK-QND120
Color Red/Green/Blue/White
Power Red:4.1W,Green/Blue/White:6.3W
Wavelength/color temperature Red 620-630nm Green 520-530nm
Blue 465-475nm White 5000-7000k
Storage Environment Temperature -20-60°C Humidity 20-85%RH(non-condensing)
Operating Environment 0-40℃
Opional Accessories Light Source Extension Cable: 3/5m
Adapter Controller CK Series Digital light source controller

Dimensions

Drawing

Top
