UV lights

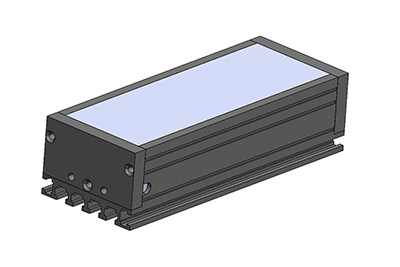

CK-UV10238 is a UV lights featuring a standard wavelength of 365nm, with customizable options for 385nm, 395nm, and 405nm. It offers a large irradiation range and uniform light distribution. An optional diffuser plate is available, which can enhance image uniformity when used in combination. This product is suitable for various inspection applications such as fluorescence observation, coating inspection, and defect detection.

Specifications
Dimensions
Downloads
Model CK-UV10238
Color UV light
Power UV 4.1W
Wavelength/color temperature Red 620-630nm Green 520-530nm
Blue 465-475nm White 5000-7000k
Storage Environment Temperature -20-60°C Humidity 20-85%RH(non-condensing)
Operating Environment 0-40℃
Opional Accessories Light Source Extension Cable: 3/5m
Adapter Controller CK Series Digital light source controller

Dimensions

Drawing
