Back-lit Backlight

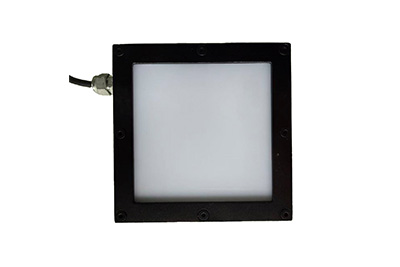

CK-IP65-8080 is a Waterproof Back-lit Backlight with an Waterproof and Dustproof: The shell adopts an integrated sealed structure, and the waterproof rubber strip is made of aging-resistant silicone rubber, which is suitable for application scenarios such as humidity, dust, and spray cleaning.
Specifications

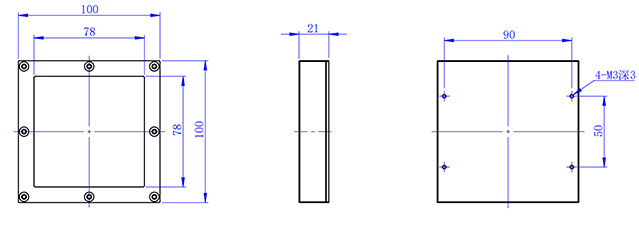

Dimensions
Downloads
| Model | CK-IP65-8080 |
| Specifications | Details |
| Input voltage | DC24V±10% |
| Color | Red/Green/Blue/White |
| Wavelength/Color Temperature | Red: 620～630nm; Green: 520～530nmBlue: 465～475nm; White: 5000-7000K |
| Max. Consumption | Red: 5.5W; Green/Blue/White: 7.6W |
| IP Rating | IP65 |
| Working mode | Continuous/Strobe |
| Shell Materials | Aluminum Alloy |
| Cable Length | 2m |
| Connector | SMR-03V-B |
| Connector Definition | 1: (+) 2: NC 3: (-) |
| Dimensions | 100*100*21mm(L*W*H) |
| Weight | 392g max |
| Fixing | 4 M3 screws |
| Optional Accessories | 3m/5m light source extension cable |
| Control Unit | CK Series Light Source Controller |
| Operating Environment | Temperature: 0～40℃, Humidity: 20～85%RH (non-condensing) |
| Storage environment | Temperature: -20～60℃, Humidity: 20～85%RH (non-condensing) |
| Cooling method | Natural cooling |
