Bilateral telecentric lens
CKVision’s full range of industrial lenses precisely matches customers’ needs for different fields of view and accuracy. For large-field, high-precision demands, its upgraded telecentric lenses achieve micron-level measurement accuracy.
Bilateral telecentric lens

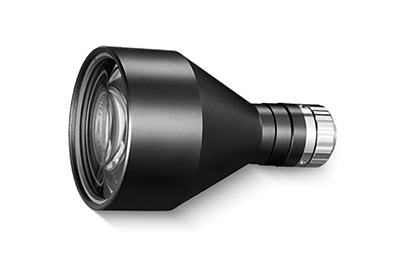

The CK-SDTCM Series lenses feature an extreme telecentric design, delivering exceptional imaging quality. With a field of view ranging from a minimum of 26mm to a maximum of 300mm, they are compatible with most industrial products.
| Model | Magnification | Supported CCD Size | Working Distance | Camera Interface |
|---|---|---|---|---|

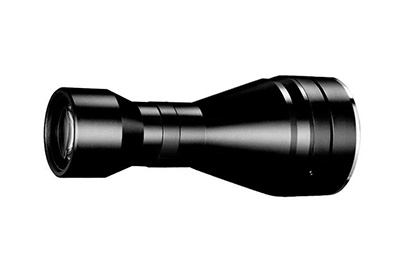

| CK-SDTCM35F-33-AL | 1.333 | 44(35mm Full) | 48±1 | F |
| CK-SDTCM35F-42-AL | 1.048 | 44(35mm Full) | 118±3 | F |
| CK-SDTCM35F-72-AL | 0.611 | 44(35mm Full) | 178±3 | F |

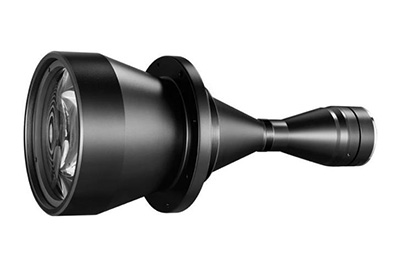

| CK-SDTCM35F-100-AL | 0.44 | 44(35mm Full) | 258±4 | F |
| CK-SDTCM35F-150-AL | 0.293 | 44(35mm Full) | 300±5 | F |
| CK-SDTCM110-24 | 0.692 | 16.6(1") | 43±1 | C |
| CK-SDTCM110-36 | 0.46 | 16.6(1") | 110±2 | C |
| CK-SDTCM110-48S-AL | 0.346 | 16.6(1") | 138±3 | C |
| CK-SDTCM110-56-AL | 0.296 | 16.6(1") | 138±3 | C |
| CK-SDTCM110-64-AL | 0.258 | 16.6(1") | 189±3 | C |
