Corner coaxial lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.
Corner coaxial lights
The diffused light is evenly emitted in the vertical direction to the camera, and the special coated optical beam splitter has no ghosting, leading to good uniformity, high brightness, clear imaging and small installation space.
Features
Description
Diagram
Application
Examples
-
-
-
-
- The use of one-piece shell to dissipate heat more efficiently
- Special coating optical beam splitter without ghosting
- High-density LED arrangement, bright and uniform
- Flexible adjustment of brightness and color temperature in the same size
-
-
-
-
-
-
-
- Mark point location and contour positioning
- 2D code and barcode recognition
- Various size measurement
- Metal surface defect detection
- Camera appearance inspection
- PCB copper leakage detection
- Screen circuit detection
- LED lamp holder inspection
-
-
-

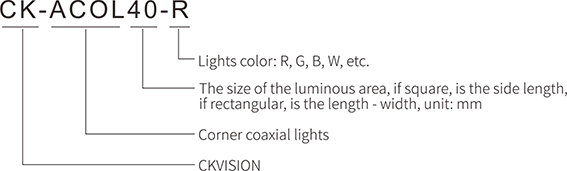

| Model | Light Color | Power (W) | Surface Size | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-ACOL40-R | 2.4W | 40X38 | 70 | 46 | 47 | |
| CK-ACOL40-G | 5.4W | 40X38 | 70 | 46 | 47 | |
| CK-ACOL40-B | 5.4W | 40X38 | 70 | 46 | 47 | |
| CK-ACOL40-W | 5.4W | 40X38 | 70 | 46 | 47 | |
| CK-ACOL50-R | 5.4W | 50×50 | 87 | 60 | 60 | |
| CK-ACOL50-G | 5.4W | 50×50 | 87 | 60 | 60 | |
| CK-ACOL50-B | 5.4W | 50×50 | 87 | 60 | 60 | |
| CK-ACOL50-W | 5.4W | 50×50 | 87 | 60 | 60 | |
| CK-ACOL60-R | 6.2W | 61X60 | 90 | 70 | 70 | |
| CK-ACOL60-G | 6.2W | 61X60 | 90 | 70 | 70 |
