Parallel coaxial lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

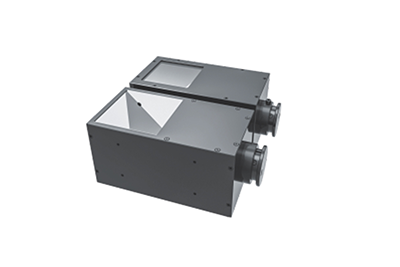

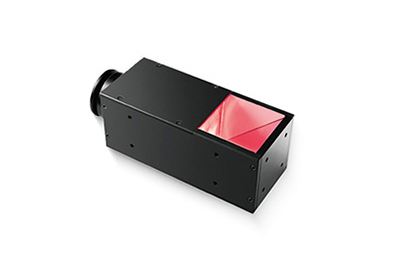

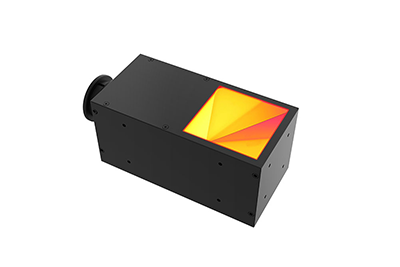

Parallel coaxial lights
This light can emit parallel light with high parallelism from the coaxial direction to the camera. It has high brightness and good uniformity. It can be used as a backlight. Compared with the telecentric parallel light source, the cost is low and the volume is small.
Features
Description
Diagram
Application
Examples
-
-
-
-
- The use of one-piece shell to dissipate heat more efficiently
- Special coating optical beam splitter without ghosting
- High-density LED arrangement, bright and uniform
- Flexible adjustment of brightness and color temperature in the same size
-
-
-
-
-
-
-
- Scratch detection on smooth surfaces
- Glue presence or absence detection
- Screen shift detection
- Detect slight scratches on the surface of the mobile phone screen
- Surface bump detection
- Detection of fine burrs on product contours
- Various size measurements
-
-
-

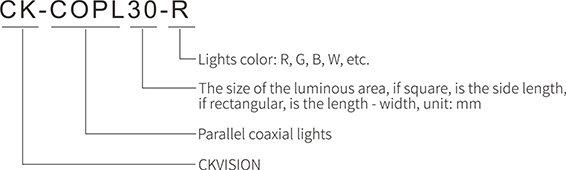

| Model | Light Color | Power (W) | Surface Size | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-COPL30-R | 3W | 30×30 | 121 | 40 | 38 | |
| CK-COPL30-G | 3W | 30×30 | 121 | 40 | 38 | |
| CK-COPL30-B | 3W | 30×30 | 121 | 40 | 38 | |
| CK-COPL30-W | 3W | 30×30 | 121 | 40 | 38 | |
| CK-COPL40-R | 3W | 40×40 | 135 | 50 | 48 | |
| CK-COPL40-G | 3W | 40×40 | 135 | 50 | 48 | |
| CK-COPL40-B | 3W | 40×40 | 135 | 50 | 48 | |
| CK-COPL40-W | 3W | 40×40 | 135 | 50 | 48 | |
| CK-COPL50-R | 3W | 50×50 | 140 | 60 | 58 | |
| CK-COPL50-G | 3W | 50×50 | 140 | 60 | 58 |
