Highlight bar lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

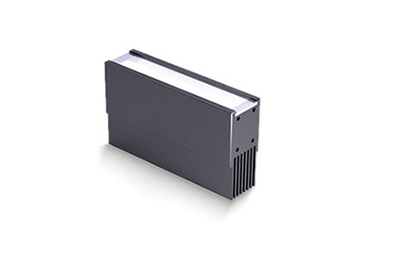

Highlight bar lights
The brightness is 3 times more than that of standard strip lights, and the length can be customized. High-power LEDs are used to achieve long working distance lighting. Colors can be matched according to testing needs. Optional diffuser plate is available to spread the light evenly.
Features
Description
Diagram
Application
Examples
-
-
-
-
- Flexible size and length.
- Radiation angle and light transmittance can be adjusted at any time according to demand.
- High-power SMD lamp beads can be replaced, and the color temperature, angle, and brightness can be adjusted according to requirements.
-
-
-
-
-
-
-
- Large suitable for all applications of strip light
- Various character recognition
- Various appearance inspections
- QR code/DM code/QR code/barcode reading
- Various damage and dirt detection
- Image scanning
- Inspection of parts on the substrate
- High-speed assembly line lighting
-
-
-

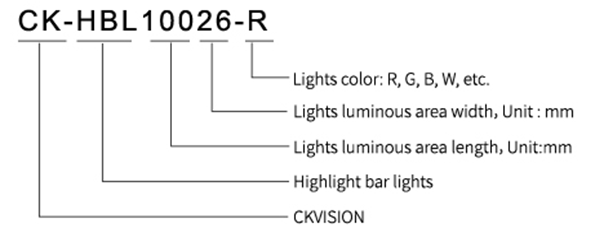

| Model | Light Color | Power (W) | LED Rings/Rows | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-HBL10026-R | 12W | 1 | 100 | 26 | 58 | |
| CK-HBL10026-G | 12W | 1 | 100 | 26 | 58 | |
| CK-HBL10026-B | 12W | 1 | 100 | 26 | 58 | |
| CK-HBL10026-W | 12W | 1 | 100 | 26 | 58 | |
| CK-HBL20026-R | 17W | 1 | 200 | 26 | 58 | |
| CK-HBL20026-G | 23W | 1 | 200 | 26 | 58 | |
| CK-HBL20026-B | 23W | 1 | 200 | 26 | 58 | |
| CK-HBL20026-W | 23W | 1 | 200 | 26 | 58 | |
| CK-HBL30026-R | 28W | 1 | 300 | 26 | 58 | |
| CK-HBL30026-G | 40W | 1 | 300 | 26 | 58 |
