Point lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

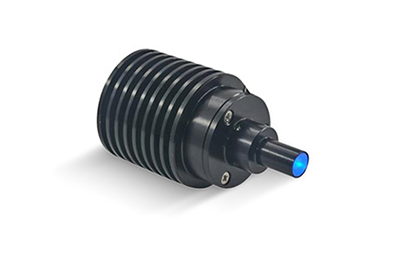

Point lights
The LED point light source has the advantages of high luminous intensity, small luminous area, compact design, and small installation space.
Features
Description

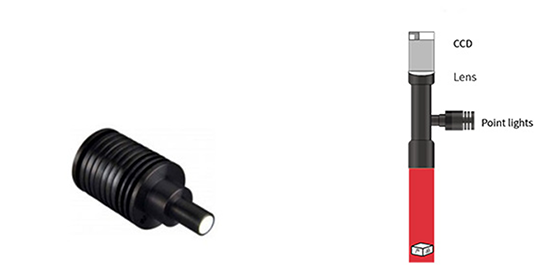

Diagram
Application

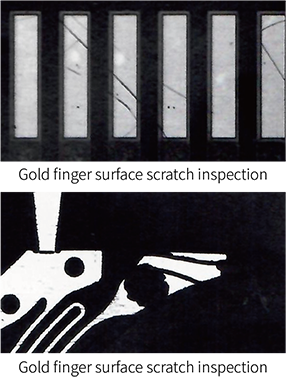

Examples
-
-
-
- Concentrated brightness with small light-emitting area
- Compact, efficient heat dissipation, low power consumption and long service life
- Compatible with mainstream telecentric lenses on the market,the coaxial lighting of the lens, and non-standard sizes can be customized
-
-
-
-
-
-
- Mark point positioning
- Used in high-speed detection occasions
- Filter surface defect detection
- Special light source for coaxial lens
- Wafer Positioning and Defect Inspection
- Detection of defects on the surface of flat objects
- Distinguishing and positioning detection of different materials
- Edge positioning detection of products with height difference
-
-
-

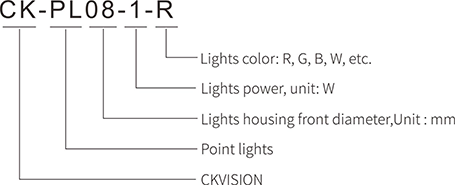

| Model | Light Color | Power (W) | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| CK-PL08-1-W | 1.3W | 24 | 8 | 50 | |
| CK-PL08-1-G | 1.3W | 24 | 8 | 50 | |
| CK-PL08-1-R | 0.9W | 24 | 8 | 50 | |
| CK-PL08-1-B | 1.3W | 24 | 8 | 50 | |
| CK-PL08-3-R | 1.8W | 24 | 8 | 59 | |
| CK-PL08-3-G | 2.5W | 24 | 8 | 59 | |
| CK-PL08-3-B | 2.5W | 24 | 8 | 59 | |
| CK-PL08-3-W | 2.5W | 24 | 8 | 59 |
