Square shadowless lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

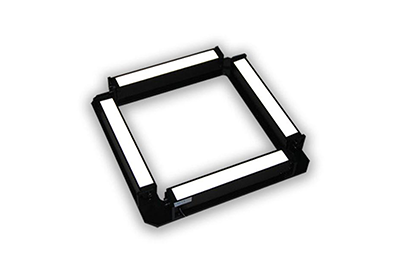

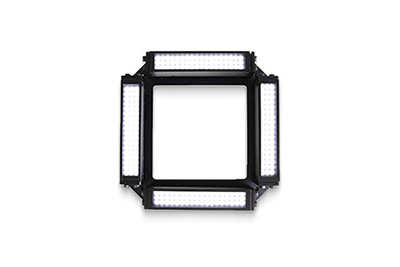

Square shadowless lights
This light provides 4-way low-angle diffuse light, with special materials and structure for soft, highly uniform light. It has no lamp bead interference or corner dark areas.
• Suitable for square objects
• Uniform luminescence
• Eliminates reflections
• Hardware size measurement
• Robot positioning
• Surface defect detection
• MARK point positioning
• PCB substrate inspection
• Substrate appearance pattern detection
• High-angle uniform irradiation

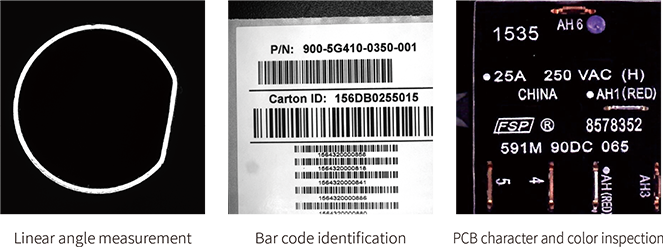

• Defect and Dirt Detection
• Microscope illumination
• Wafer body detection
• FPC product positioning
• Pin bending detection

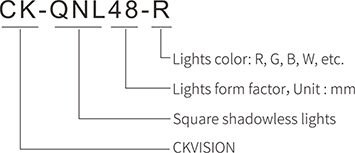

| Model | Light Color | Power (W) | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| CK-QNL48-R | 1.6W | 48 | 48 | 30 | |
| CK-QNL48-G | 2.6W | 48 | 48 | 30 | |
| CK-QNL48-B | 2.6W | 48 | 48 | 30 | |
| CK-QNL48-W | 2.6W | 48 | 48 | 30 | |
| CK-QNL75-R | 2.1W | 75 | 75 | 30 | |
| CK-QNL75-G | 3.8W | 75 | 75 | 30 | |
| CK-QNL75-B | 3.8W | 75 | 75 | 30 | |
| CK-QNL75-W | 3.8W | 75 | 75 | 30 | |
| CK-QNL96-R | 3.1W | 96 | 96 | 30 | |
| CK-QNL96-G | 5.1W | 96 | 96 | 30 |
