Ring lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

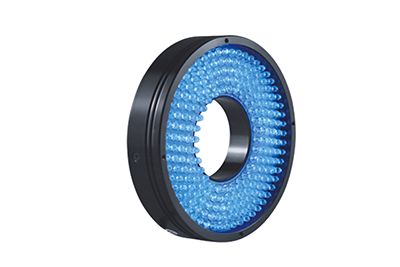

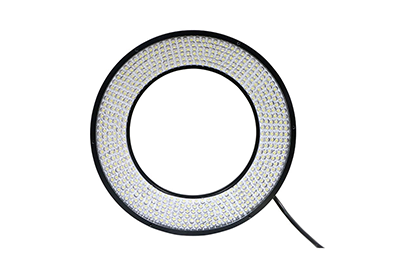

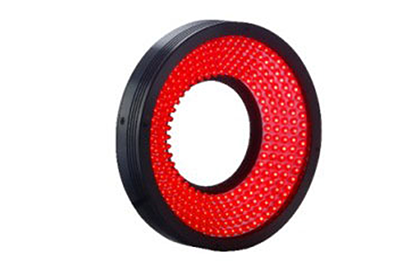

Ring lights
The Ring lights provides illumination with different angles and color combinations, which can highlight the three-dimensional information of objects and effectively solve the shadow problem caused by diagonal illumination.
Features

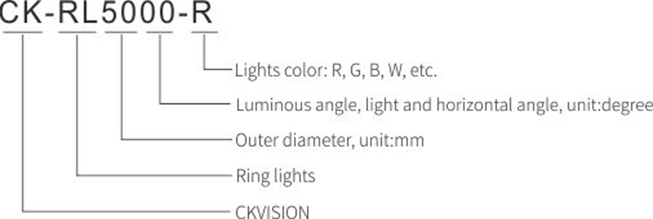

Description

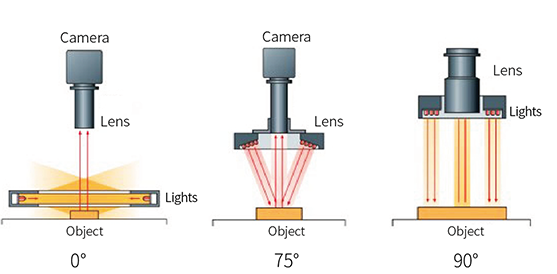

Diagram
Application
Examples
-
-
-
- High-density LED display, high brightness
- Compact design, saving installation space
- Optional diffuser plate to spread the light evenly
- Unique heat dissipation structure to improve light source stability
- 360-degree illumination of the ring lights, highlighting the three-dimensional information of the product
- Various angles, various diameters, various brightness options
-
-
-
-
-
-
- Various character recognition
- Various visualinspections
- Various defect detection
- Manipulator/MARK positioning
- Various damage and dirt detection
- OR code/DM code/QR code/barcode reading
- Dimensional measurement of various spare parts
- Different varieties mixed in detection by color recognition
-
-
-
| Model | Light Color | Power (W) | LED Rings/Rows | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-RL5000-R | 0.8W | 1 | 50 | 14 | 10 | |
| CK-RL5000-G | 1.2W | 1 | 50 | 14 | 10 | |
| CK-RL5000-B | 1.2W | 1 | 50 | 14 | 10 | |
| CK-RL5000-W | 1.2W | 1 | 50 | 14 | 10 | |
| CK-RL5015-R | 1.6W | 2 | 50 | 17 | 20 | |
| CK-RL5015-W | 2.4W | 2 | 50 | 17 | 20 | |
| CK-RL5015-B | 2.4W | 2 | 50 | 17 | 20 | |
| CK-RL5015-G | 2.4W | 2 | 50 | 17 | 20 | |
| CK-RL5030-R | 1.96W | 2 | 50 | 19.5 | 17.5 | |
| CK-RL5030-G | 3.2W | 2 | 50 | 19.5 | 17.5 |
