Round shadowless lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

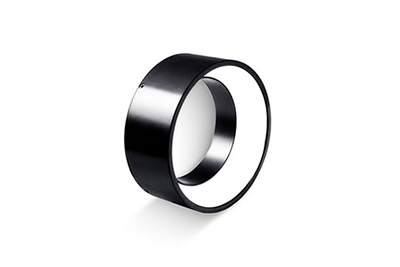

Round shadowless lights
This type of light provides low angle illumination. It is great for round objects measurement. It uses special diffusing material with high uniformity, and no lamp bead interference.
• Use for Ring targets with larger formats and different regular targets with smaller formats
• For ordinary ring light sources, it can achieve high uniform lighting
• Can achieve ring-shaped shadowless irradiation effect
• Pin bending detection
• Various character recognition
• Inspection of parts on the substrate
• Uniform irradiation at low angle
• Detection of dirt on the surface of the pin
• Label detection, foreign body detection on the epistar
• FPC product positioning
• Contour extraction of round metal parts
| Model | Light Color | Power (W) | Surface Size | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-TNL50-R | 2.6W | 42 | 50 | 21 | 40 | |
| CK-TNL50-G | 3.5 | 42 | 50 | 21 | 40 | |
| CK-TNL50-B | 3.5 | 42 | 50 | 21 | 40 | |
| CK-TNL50-W | 3.5 | 42 | 50 | 21 | 40 | |
| CK-TNL100-R | 5.2W | 92 | 100 | 71 | 40 | |
| CK-TNL100-G | 7.8W | 92 | 100 | 71 | 40 | |
| CK-TNL100-B | 7.8W | 92 | 100 | 71 | 40 | |
| CK-TNL100-W | 7.8W | 92 | 100 | 71 | 40 | |
| CK-TNL180-G | 15W | 172 | 180 | 151 | 40 | |
| CK-TNL180-B | 15W | 172 | 180 | 151 | 40 |
