AOI lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

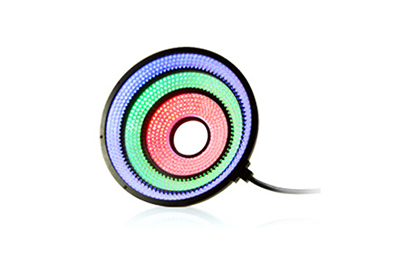

AOI lights
This type of the light provide multi-color and multi-angle lighting with high brightness and fast detection speed. It is useful for three-dimensional information extraction. Each color can be independently controlled.
Features
Description
Diagram
Application
Examples
-
-
-
- Multi-color and multi-angle lighting that can accurately reflect the slope information of the surface of the object.
- It is dedicated to AOI and is mostly used for ring defect detection.
- Each color can be controlled independently.
- Can be customized according to specific requirements.
-
-
-
-
-
- Character Inspection
- Welding Quality Inspection of Electronic Components
- Surface defect detection of rubber ring products
- Detection of fine scratches and pits on the surface of highly reflective objects
- The surface of the filter is scratched and dirty
-
-
| Model | Light Color | Power (W) | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| CK-AOIL9520-W | 15W | 95 | 20 | 40 | |
| CK-AOIL11850-DS-R | 17W | 118 | 50 | 41 | |
| CK-AOIL11850-DS-G | 20W | 118 | 50 | 41 | |
| CK-AOIL11850-DS-B | 20W | 118 | 50 | 41 | |
| CK-AOIL13045-W | 22W | 130 | 45 | 58 | |
| CK-AOIL20365-DS-R | 30W | 203 | 65 | 61 | |
| CK-AOIL20365-DS-G | 40W | 203 | 65 | 61 | |
| CK-AOIL20365-DS-B | 40W | 203 | 65 | 61 |
