Dome lights
CKVision’s cost-effective industrial lighting series provides systematic optical solutions, significantly improving detection efficiency and accuracy, with customizable options to meet precise size fits and complex application extensions.

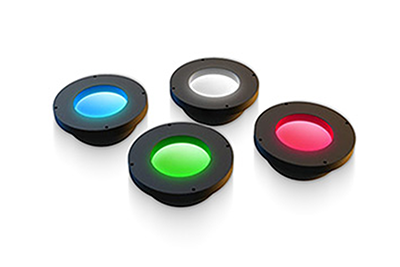

Dome lights
Dome lights: high-density LED spherical design, stable performance, easy installation.

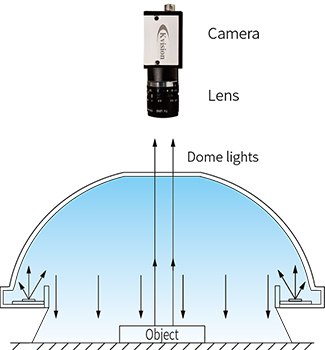

Even bottom emission with special light paths for multi-directional lighting; large diffusion area fits curved, uneven surface detection.
-
-
-
-
- Spherical diffuse luminescence
- Suitable for undulating surface and reflective objects
- Unique heat dissipation structure to improve the stability of the
machine vision lights - Compact design to save installation space
-
-
-
• Surface defect detection
• Hardware size measurement
• Robotic positioning
• Mark point positioning
• Metal, glass and other reflux object surface detection
• Edge extraction of hardware parts
• Electrical appearance surfacecharacter recognition
• Line color distinction, wheel hub appearance testing

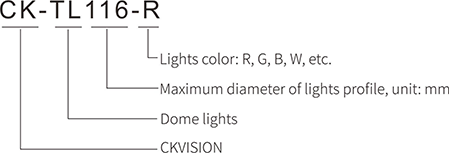

| Model | Light Color | Power (W) | Surface Size | Outer / Length (mm) | Inner / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-TL70-R | 5W | 45 | 70 | 15 | 32 | |
| CK-TL70-G | 7W | 45 | 70 | 15 | 32 | |
| CK-TL70-B | 7W | 45 | 70 | 15 | 32 | |
| CK-TL70-W | 7W | 45 | 70 | 15 | 32 | |
| CK-TL116-R | 11 | 66 | 116 | 25 | 59.4 | |
| CK-TL116-G | 16 | 66 | 116 | 25 | 59.4 | |
| CK-TL116-B | 16 | 66 | 116 | 25 | 59.4 | |
| CK-TL116-W | 16 | 66 | 116 | 25 | 59.4 | |
| CK-TL175-R | 16 | 116 | 175 | 35 | 83.7 | |
| CK-TL175-B | 26 | 116 | 175 | 35 | 83.7 |
