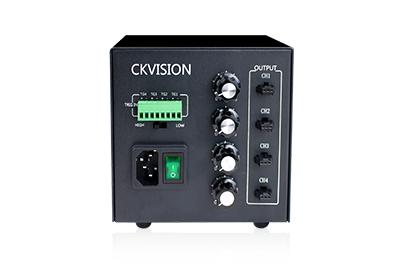

Analog Light Source Controller
Single-channel maximum load output current up to 1A
Light source brightness steplessly adjustable from 0 to 255
Supports external triggering, with selectable high/low external trigger level
Equipped with overload and short-circuit protection functions
Specifications
Dimensions
Downloads
| Driving Mode | Constant Voltage |
| Dimming Mode | Panel Knob |
| Input Voltage | AC 100～240V 50/60Hz |
| Brightness Level | 0～255 |
| Number of Output Channels | 4 |
| Output Voltage | DC 24V |
| Maximum Output Power | 75W |
| Single-Channel Maximum Output Current | 1A |
| Output Port | SMP-03V-BC |
| External Trigger Voltage | DC 5~24V (current approx. 5.6mA) |
| Operating Environment | Temperature: 0～40℃, Humidity: 20～85%RH (non-condensing) |
| Storage Environment | Temperature: -20～60℃, Humidity: 20～85%RH (non-condensing) |
| Cooling Method | Natural Cooling |
