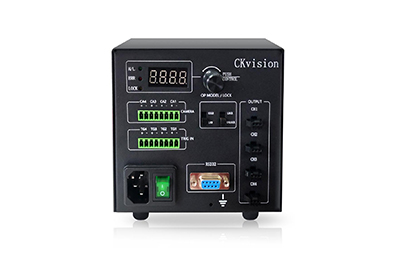

Digital Strobe Controller
The CK-HDT48 series digital overdrive strobe controller is specifically designed for strobe control.The unique overdrive driving mode finds significant applications in high-speed detection fields such as semiconductor and metal size measurement,packaging foreign object identification.
Specifications

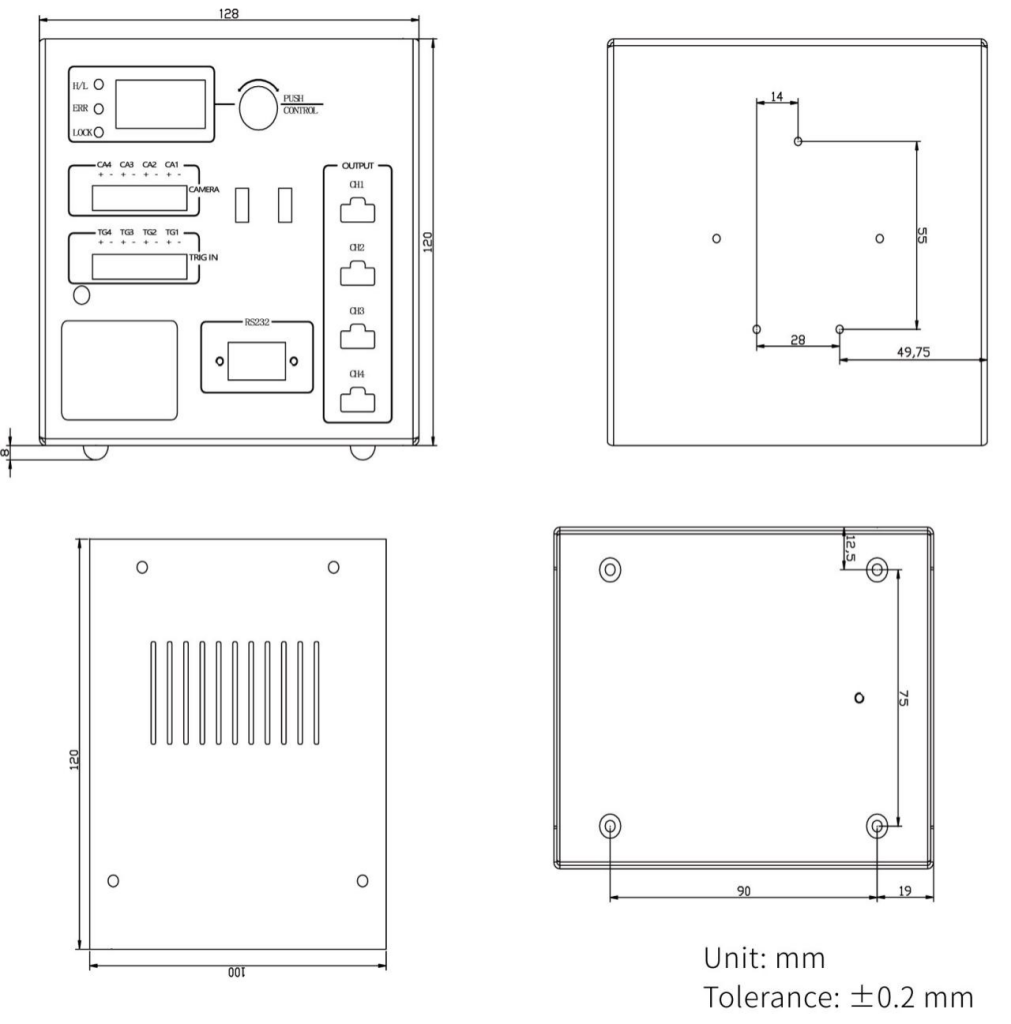

Dimensions
Downloads
Features
- High Current Output: Each channel supports a peakcurrent up to 3A.
- Brightness Control: Adjustable via a rotary knob or serial communication interface.
- Brightness Levels: Provides 256 brightness levels, ranging from 0 to 255.
- Opto-isolated External Trigger: SupportsNPN/PNP trigger modes, with pulse widths as low as 10μ
- Safety Features: Includes power-off memory, overload, and short-circuit protection.
- Based on the overdrive technology, it can increase the light source output by over 10 times compared to continuous mode, making it suitable for high-speed applications with microsecond-level exposure.
- We provide customized driver power supply services, with flexible specification adjustments according to requirements. The maximum power supports up to 600W, meeting the needs of diverse application scenarios.
Specifications
| Model | CK-HDT48-200W |
| Drive Mode | Overdrive |
|
Dimming Mode
|
256 levels PWM control |
| Panel-mounted rotary knob/RS232 | |
| PWM Frequency | 120KHz |
| Input Voltage | AC200～264V 50/60Hz |
| Channels | 4 |
| Output Voltage | DC 48V |
| Peak Output Current | 3A max.（single channel） |
| Maximum Output Power | 200W |
| Trigger Input Voltage | DC 5V～24V（approx.5.6mA） |
| Trigger Input mode | PNP/NPN/Soft trigger |
| Trigger Delay | 30μs max.（load-dependent） |
| Lighting Time | Depends on the duration of the valid level |
| Lighting Delay | 15μs max. |
| Operating Temp/Humidity | 0～40°C, 20～85% RH (non-condensing) |
| Storage Temp/Humidity | -20～60°C, 20～85% RH (non-condensing) |
| Cooling Method | Natural cooling |
