Machine Vision Software Without Programming

CKVisionBuilder 4.0

A software designed for rapid development of automated equipment

Contact Download

CKVisionBuilder 4.0

A versatile machine vision software for automated online production and smart quality inspection,
successfully integrating cutting-edge AI technology

Combines 2D/3D detection
and deep learning

Powerful computing engine handles high-precision
detection scenarios with ease

Rich algorithm toolbox covering
all industry scenarios

No Programming, Easy to Use

Most common machine vision software requires extensive programming knowledge,
but CKVisionBuilder 4.0 eliminates the need for coding. With simple setups,
it solves many inspection challenges in manufacturing.

No code

Support

Exports

Drag and drop operation
Thousands of image algorithms
Provide multiple ROIs
Provide a large number of demos
Customizable interface

Support multiple cameras
Support multitasking
Support robot vision guidance
Support hardware acceleration
Support various communication protocols

Quickly obtain results
Provide multiple result outputs
Provide data statistical analysis
Support Excel output
Suitable for various industries

Suitable for various industries

The core strength of CKVisionBuilder 4.0 lies in its highly flexible visual customization interface and a groundbreaking feature—allowing users to export standalone executable programs that run without the main software environment. This innovation boosts system performance and project processing speed while meeting the strict deployment demands of industrial sites.

Highly Stable Image Algorithms

The CKVisionBuilder intelligent vision platform, with its highly stable image processing algorithms, has been successfully deployed globally in hundreds of thousands of industrial devices. This achievement reflects over 20 years of industry expertise and continuous innovation by CKVision, proven reliable through long-term market validation.

Positioning

Recognition

Measurement

Inspection

3D

Robot Vision

Uses tools like grayscale matching, shape matching, or contour matching for stable searches, even with rotation, scaling, uneven lighting, blur, occlusion, or complex backgrounds. Commonly used for locating product positions and detecting product presence, applied in bonding, electronic picking, assembly, welding, etc.

Cell positioning

Screw hole positioning

Motor positioning

Car screen lamination

Mobile phone assembly positioning

Supports barcode, QR code, and OCR character reading, even in extreme conditions like strong reflections, low contrast, over-inked, or partial occlusion. Color recognition identifies colors in specified image areas based on hue histograms.

QR code recognition

Barcode recognition

Color recognition

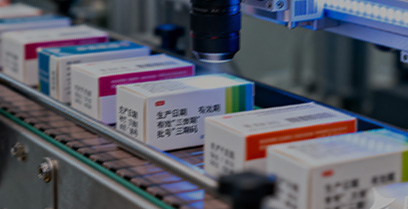

Three-period code

OCR

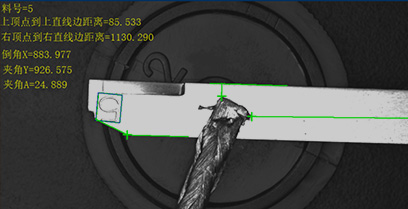

Includes tools for detecting spacing, edges, vertices, width, and straight lines, enabling precise and stable measurements of hardware, connectors, pins, stamped parts, tools, etc., with a repeatability resolution of 0.001mm.

Symmetry measurement

Detecting circles

Tab measurement

Pin spacing measurement

Linear Angle Measurement

Uses spot analysis and contour defect tools to detect target quantities and geometric features (e.g., area, position, orientation, dirt, scratches), and automatically removes shadows or gradients from uneven lighting or surface reflections.

Spot Detection

Glue Inspection

Weld inspection

Solder Inspection

Glue Coating Area Inspection

CKVision 3D vision accurately measures height, steps, curvature, flatness, and angles, with automatic tilt correction for accurate data.

Glue Path Inspection

Connector Height Measurement

Sealing Pin Height Measurement

Solder Ball Height Measurement

Transformer Soldering Defect Inspection

Robots use CKVisionBuilder 4.0’s positioning tools to get XY coordinates, sending data via TCP/IP to the robot controller for precise accessory installation. Supports direct communication with various robot controllers, ensuring Positioning and stability between vision and robot coordinate systems.
