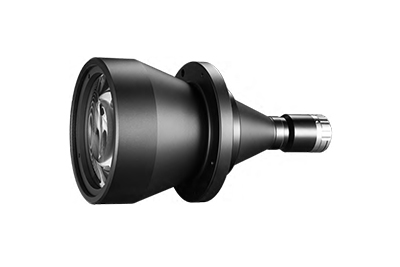

CK-SDTCM110-150-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications

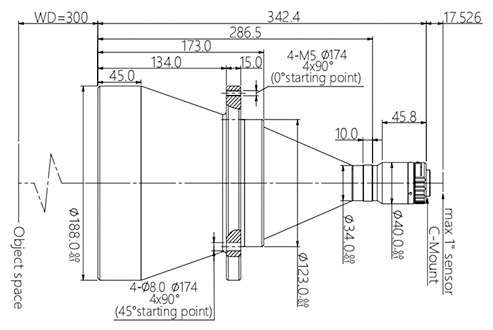

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 150 |
| Magnification β(x) | 0.110 |
| Working distance (mm) | 300±5 |
| CCD size (Φmm) | 16.6(1″) |
| F/# | 6.5 |
| MTF30(lp/mm) | >120 |
| Depth of field (mm) | ±52.8@F16 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 660±5 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 342.4 |
| Net weight (kg) | 5.8 |
| Field of View (mm x mm) | |
| 1″ PYTHON 5000(12.43×9.83) | 113.0×89.4 |
| 1″ IMX255(14.19×7.51) | 129.0×68.3 |
| 1″ IMX183(13.13×8.76) | 119.4×79.6 |
