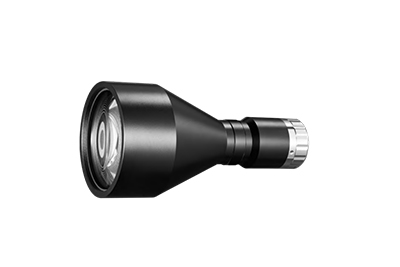

CK-SDTCM111-56-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 56 |
| Magnification β(x) | 0.329 |
| Working distance (mm) | 138±3 |
| CCD size (Φmm) | 18.4(1.1″) |
| F/# | 6.2 |
| MTF30(lp/mm) | >145 |
| Depth of field (mm) | ±4.0@F11 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 345±3 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 189.2 |
| Net weight (kg) | 0.8 |
| Field of View (mm x mm) | |
| 1″ IMX183 (13.13×8.76) | 39.9×26.6 |
| 1.1″ IMX253 (14.19×10.38) | 43.1×31.6 |
