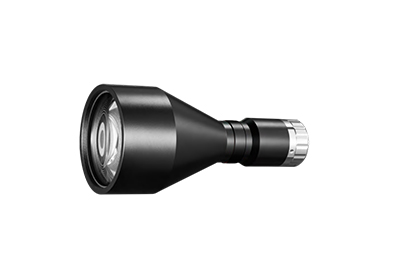

CK-SDTCM125-56-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications

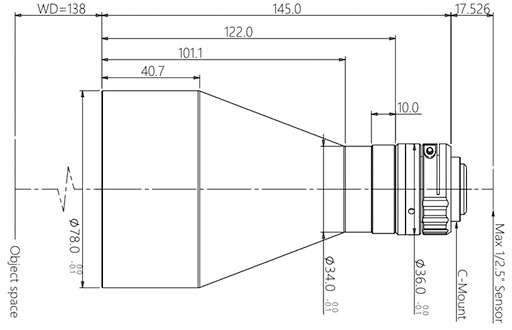

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 42 |
| Magnification β(x) | 0.171 |
| Working distance (mm) | 118±3 |
| CCD size (Φmm) | 7.2(1/2.5″) |
| F/# | 4.2 |
| MTF30(lp/mm) | >200 |
| Depth of field (mm) | ±15.0@F11 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 244±3 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 108.9 |
| Net weight (kg) | 0.4 |
| Field of View (mm x mm) | |
| 1/3″ AR130/RJ33 (4.8×3.6) | 28.1×21.1 |
| 1/2.5″ 9P001/31 (5.7×4.28) | 33.3×25.0 |
