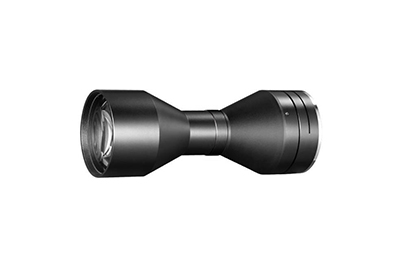

CK-SDTCM210-48-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 48 |
| Magnification β(x) | 0.688 |
| Working distance (mm) | 128±3 |
| CCD size (Φmm) | 33(2″) |
| F/# | 12.9 |
| MTF30(lp/mm) | >60 |
| Depth of field (mm) | ±1.7@F20 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 364±3 |
| Mechanical parameters | |
| Camera Interface | F |
| Length of lens (mm) | 189.5 |
| Net weight (kg) | 1.0 |
| Field of View (mm x mm) | |
| 2″ DALSA 12M (24.58×18.43) | 35.7×26.8 |
| 2″ PYTHON 25K (23.04×23.04) | 33.5×33.5 |
