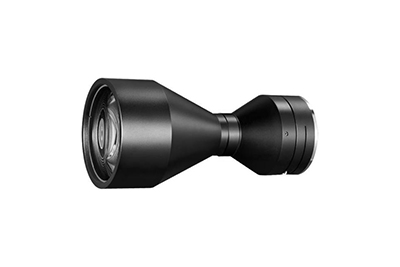

CK-SDTCM210-72-M58-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentric, ultra-low distortion, large depth of field, to meet the requirements of high-end systems
Specifications

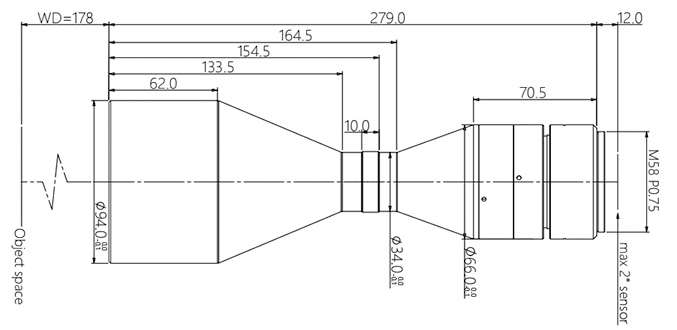

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 72 |
| Magnification β(x) | 0.458 |
| Working distance (mm) | 178±3 |
| CCD size (Φmm) | 33(2″) |
| F/# | 9.7 |
| MTF30(lp/mm) | >90 |
| Depth of field (mm) | ±3.8@F20 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 469±3 |
| Mechanical parameters | |
| Camera Interface | M58 |
| Length of lens (mm) | 279.0 |
| Net weight (kg) | 1.6 |
| Field of View (mm x mm) | |
| 2″ DALSA 12M (24.58×18.43) | 53.7×40.2 |
| 2″ PYTHON 25K (23.04×23.04) | 50.3×50.3 |
