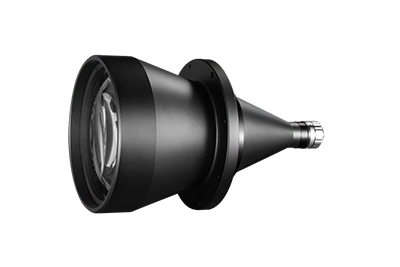

CK-SDTCM230-150-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 150 |
| Magnification β(x) | 0.076 |
| Working distance (mm) | 300±5 |
| CCD size (Φmm) | 11.4(2/3″) |
| F/# | 4.9 |
| MTF30(lp/mm) | >185 |
| Depth of field (mm) | ±76.1@F11 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 642±5 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 324.0 |
| Net weight (kg) | 5.7 |
| Field of View (mm x mm) | |
| 1/1.8″ EV76C570 (7.2×5.4) | 94.7×71.1 |
| 1/1.7″ IMX226 (7.5×5.6) | 98.7×73.7 |
| 2/3″ IMX250/264 (8.45×7.1) | 111.2×93.4 |
