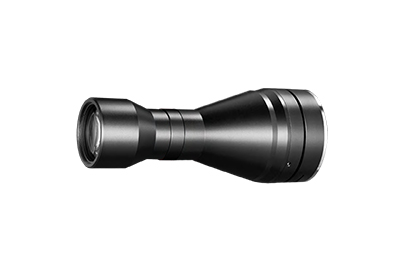

CK-SDTCM430H-26-M58-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications

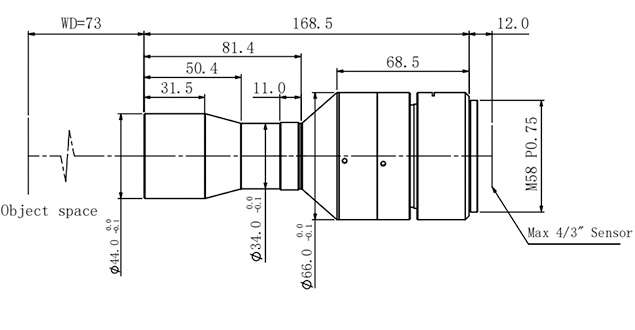

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 26 |
| Magnification β(x) | 0.908 |
| Working distance (mm) | 73±1 |
| CCD size (Φmm) | 23.6(4/3″) |
| F/# | 12.3 |
| MTF30(lp/mm) | >68 |
| Depth of field (mm) | ±1.0@F20 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 254±1 |
| Mechanical parameters | |
| Camera interface | M58 |
| Overall length of lens (mm) | 168.5 |
| Net weight (kg) | 0.8 |
| Field of View (mm x mm) | |
| 4/3″ KEYENCE 21M (17.86×14.32) | 19.7×15.8 |
| 4/3″ PYTHON 12K (18.43×13.82) | 20.4×15.1 |
| 4/3″ CMV8000 (18.48×13.73) | 20.4×15.1 |
