CK-SMFA121-U18
- A variety of focal lengths to choose from, adjustable aperture
- High definition, high contrast, low distortion, excellent performance
- Each lens has been rigorously tested to ensure constant quality
Specifications

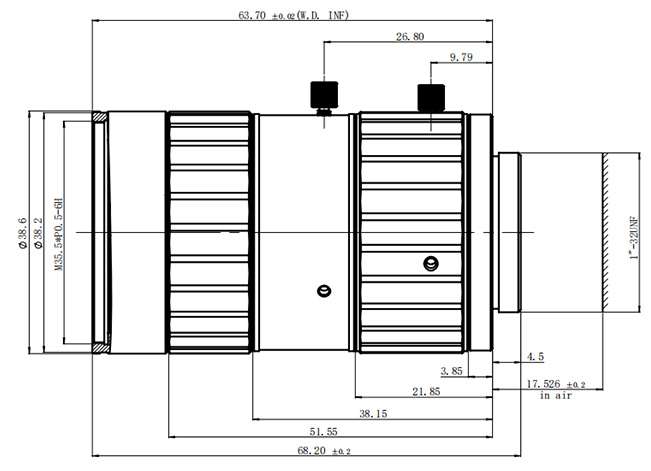

Dimensions
Downloads
| 1.2″ F4.0/16 C-Mount | ||||
| Focal length | f=18mm | |||
| Aperture range | F=4.0~16 | |||
| Camera chip size | 1″ | 1.1″ | 1.2″ | |
| Field of view | H | 37.8° | 42.3° | 43.7° |
| V | 30.2° | 32.4° | 38.3° | |
| D | 47.1° | 51.6° | 55.8° | |
| TV distortion | <0.5% | |||
| Closest distance MOD | 0.1m | |||
| Maximum target size | Φ19.6mm | |||
| Filter thread size | M35.5*P0.5 | |||
| Interface | C-Mount | |||
