CK-SMFA121-U25
- A variety of focal lengths to choose from, adjustable aperture
- High definition, high contrast, low distortion, excellent performance
- Each lens has been rigorously tested to ensure constant quality
Specifications

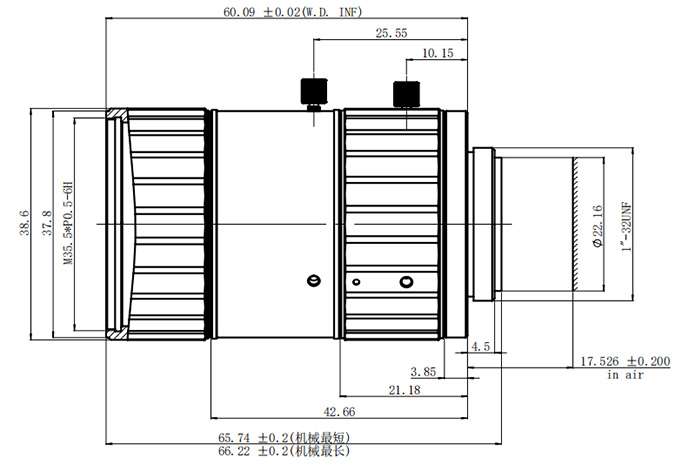

Dimensions
Downloads
| 1.2″ F4.0/16 C-Mount | ||||
| Focal length | f=25mm | |||
| Aperture range | F=4.0~16 | |||
| Camera chip size | 1″ | 1.1″ | 1.2″ | |
| Field of view | H | 27.1° | 30.6° | 30.5° |
| V | 21.6° | 23.1° | 27.5° | |
| D | 34.2° | 37.7° | 40.2° | |
| TV distortion | <0.1% | |||
| Nearest distance MOD | 0.1m | |||
| Maximum target surface size | Φ19.6mm | |||
| Filter thread size | M35.5*P0.5 | |||
| Interface | C-Mount | |||
