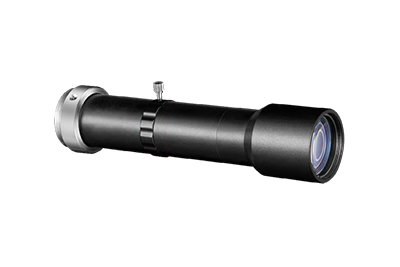

CK-SWWH08-130AT-G
- Equipped with variable light bar specifications to achieve the best balance between resolution and depth of field
- Widely used in high-precision visual positioning and other occasions
Specifications

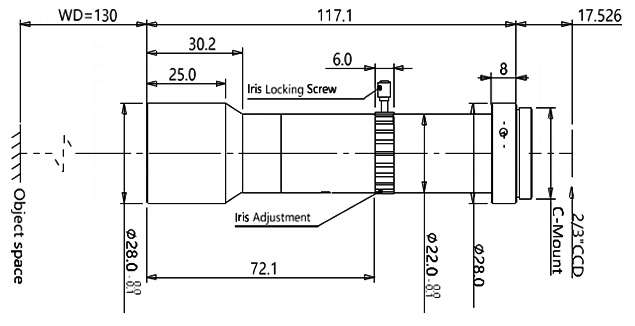

Dimensions
Downloads
| Optical parameters | |
| Magnification β(x) | 0.8 |
| Working distance (mm) | 130±2 |
| Image Square Maximum CCD Size (Φmm) | 11(2/3″) |
| F/# | 12.6 |
| Telecentricity (° max) | <0.1 |
| Image square distortion (%) | <0.1 |
| Numerical aperture NA | 0.0316 |
| Object resolution (um) | 10.6 |
| Object depth of field (mm) | 1.6 |
| Mechanical parameters | |
| Camera interface | C |
| Total lens length (mm) | 117.1 |
| Whether coaxial light / Dimmable bar | No/Yes |
| Viewable range (mm x mm) | |
| 1/2″(6.4×4.8) | 8.0×6.0 |
| 1/1.8″(7.13×5.37) | 8.9×6.7 |
| 2/3″(8.8×6.6) | 11.0×8.3 |
