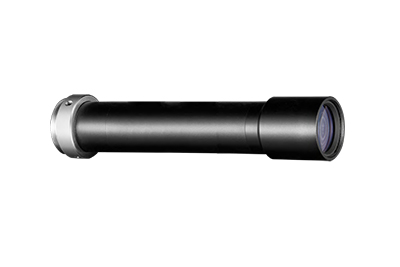

CK-SWWH15-85AT
- Equipped with variable light bar specifications to achieve the best balance between resolution and depth of field
- Widely used in high-precision visual positioning and other occasions
Specifications

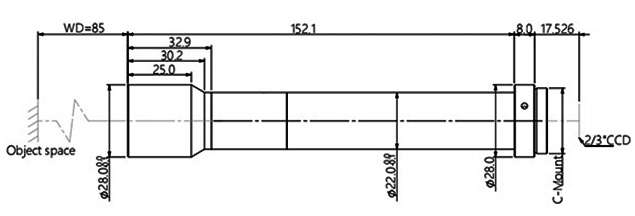

Dimensions
Downloads
| Optical parameters | |
| Magnification β (x) | 1.5 |
| Working distance (mm) | 85 |
| CCD size (Φmm) | 11(2/3″) |
| F/# | 15.9 |
| Telecentricity (% max) | 0.1 |
| Image distortion (° max) | <0.1 |
| Numerical aperture NA | 0.04716 |
| Object resolution (um) | 7.1 |
| Object depth of field DoF (mm) | 0.6 |
| Mechanical parameters | |
| Camera interface | C |
| Total lens length (mm) | 160.1 |
| Whether coaxial light / Dimmable bar | No/No |
| Viewable range (mm x mm) | |
| 1/2″(6.4×4.8) | 4.3×3.2 |
| 1/1.8″(7.13×5.37) | 4.8×3.6 |
| 2/3″(8.8×6.6) | 5.9×4.4 |
