Finished‑goods packing stations include multiple manual steps: material loading, inserting accessories/manuals, flap folding, tape sealing and label application. With fast line speed and numerous SKUs, production quality heavily relies on operators strictly following SOP procedures. Common quality risks are listed below:
- Skipped or reversed working steps: Operators seal cartons before inserting accessories or manuals; tape is applied without proper flap folding, resulting in poorly‑closed boxes.
- Missing accessories: Parts, certificates, warranty cards or user manuals are left out, leading to high complaint and return rates from end‑customers.
- Limitation of manual sampling inspection: Human inspectors get fatigued over long shifts. Only partial sampling can be performed, leaving risks of defective cartons being shipped out.
- Difficult traceability: Once customer complaints occur, there is no video record of packing operations to distinguish human error from material‑related issues.
Traditional machine vision only inspects final carton appearance, but cannot supervise whether operators follow SOP step‑by‑step. It fails to eliminate man‑made packaging defects at source.
CKVision AI‑SOP Behavior Analysis Platform Solution

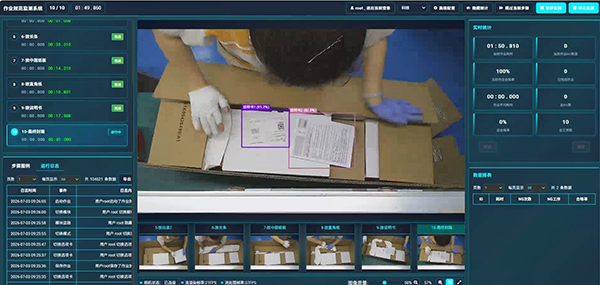

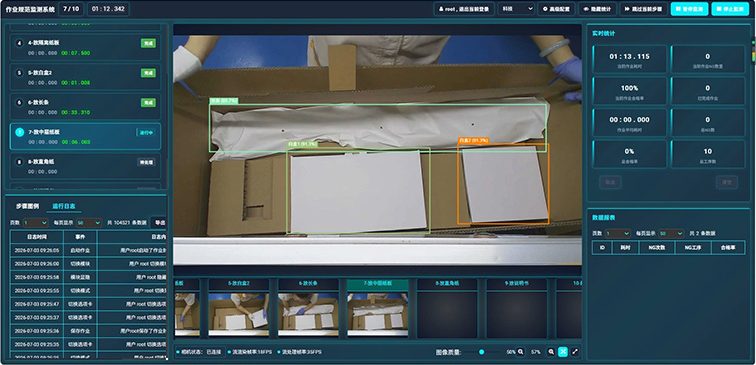

Industrial cameras are installed at packing workstations. Powered by YOLO object detection and MoveNet pose estimation algorithms, the platform performs sequential AI analysis on operators’ full packing motions and compares against predefined SOP workflows. It monitors not only sealing results but also whether every human operation follows standard requirements.
Key Inspection Items:

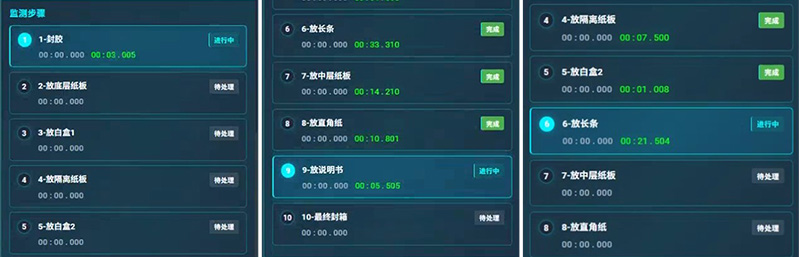

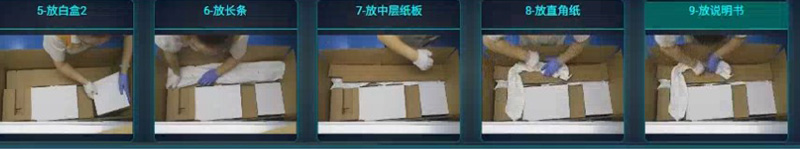

- SOP sequence verification: Validate full workflow order including loading, accessory insertion, flap folding, tape sealing and labeling. Detect skipped or reversed steps.
- Accessory insertion detection: Check whether manuals, certificates and accessory kits are properly placed inside cartons, alert for missing‑insertion behaviors.
- Key‑motion compliance judgment: Verify critical actions such as box‑flap folding and tape‑applying are fully completed.
- Real‑time alarm output: Trigger audio‑visual alerts for non‑compliant operations. Connect to factory MES to block defective cartons from flowing downstream.

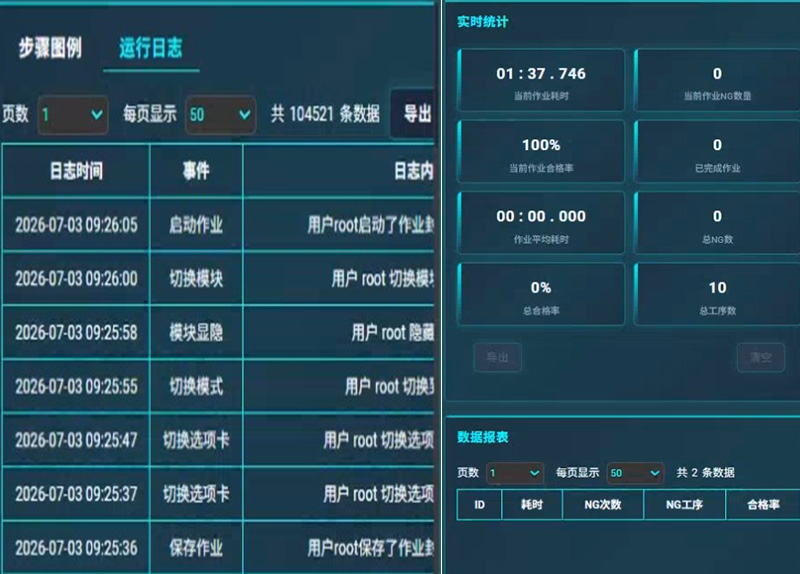

- Full‑process data archiving: Automatically store operation videos and alarm logs linked with batch numbers. Support quick playback for quality audit and complaint traceback.
Solution Benefits
- Reduce complaints & returns: Block missing‑accessory and mis‑sealing problems in‑process, cutting losses caused by human‑made packaging mistakes.
- Eliminate sampling blind‑spots: Realize 100% process monitoring independent of inspector fatigue or shift changes.
- Lower training pressure for new hires: AI restricts operating workflows, reducing reliance on operator experience.
- Complete traceability evidence: Packing footage can be retrieved for root‑cause analysis and customer audit requirements.
Deployment Highlights
No major modification to existing packing stations. Edge‑side local AI inference delivers millisecond‑level response. SOP workflows are configured via web browser with zero‑code operation. Fast switching between different SKU packing procedures for flexible mixed‑model production lines.
