CK-TL559380-W

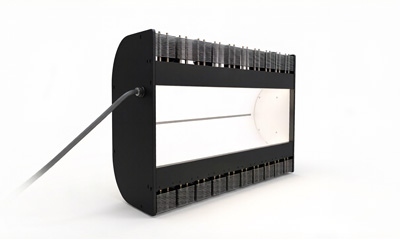

The CK-TL559380 is a tunnel light featuring high-power SMD LEDs that deliver high brightness and excellent uniformity. Equipped with high-efficiency heat-dissipating profiles and high-speed cooling fans, it is ideal for use with line-scan cameras and can be customized to meet specific customer requirements.
Specifications

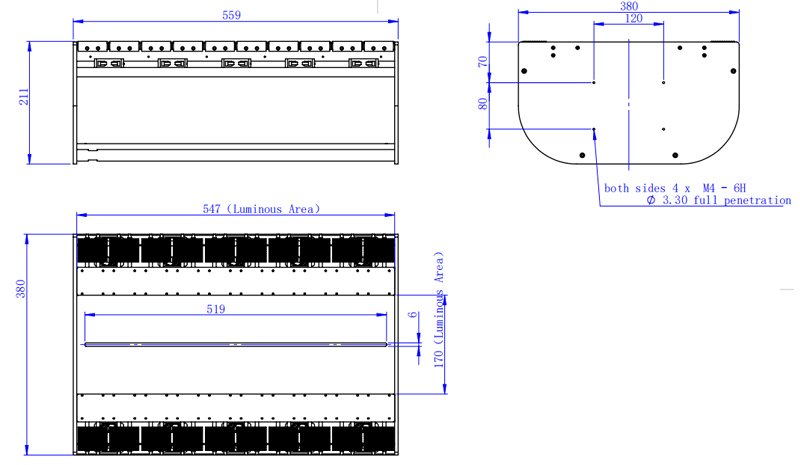

Dimensions
Downloads
| Product Model | CK-TL559380-W | |||
| Light Color | White | |||
| Power | 420W | |||
| Wavelength / Color Temperature | Red | 620-630nm | Green | 520-530nm |
| Blue | 465-475nm | White | 5000-7000k | |
| Storage Environment | 温度 | -20-60°C | 湿度 | 20-85%RH(非凝结) |
| Operating Environment | 0-40℃ | |||
| Optional Accessories | Light Extension Cable 3/5 Meters | |||
| Controller | CK Series Light Controller | |||
