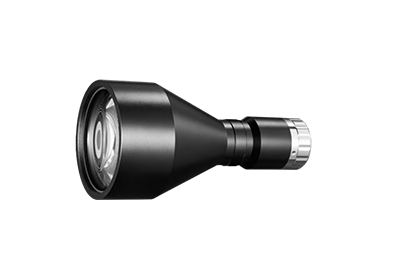

CK-SDTCM111-80H-AL
- Support various specifications from 1/2.5″~1.1” C interface industrial cameras
- Large aperture, high telecentric, ultra-low distortion, large depth of field, to meet the requirements of high-end systems
Specifications

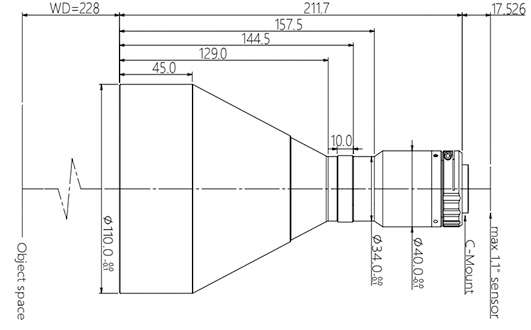

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 80 |
| Magnification β(x) | 0.230 |
| Working distance (mm) | 228±4 |
| CCD size (Φmm) | 18.4(1.1″) |
| F/# | 6.2 |
| MTF30(lp/mm) | >145 |
| Depth of field (mm) | ±12.1@F16 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 457±4 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 211.7 |
| Net weight (kg) | 2.0 |
| Field of View (mm x mm) | |
| 1″ IMX183 (13.13×8.76) | 57.1×38.1 |
| 1.1″ IMX253 (14.19×10.38) | 61.7×45.1 |
