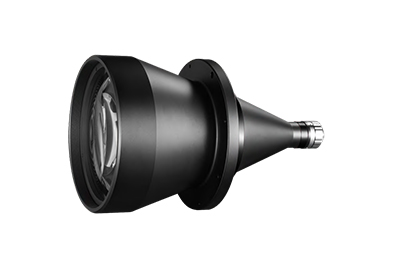

CK-SDTCM118-120H-AL
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 120 |
| Magnification β(x) | 0.075 |
| Working distance (mm) | 273±5 |
| CCD size (Φmm) | 9.0(1/1.8″) |
| F/# | 4.5 |
| MTF30(lp/mm) | >200 |
| Depth of field (mm) | ±78.2@F11 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 562±5 |
| Mechanical parameters | |
| Camera interface | C |
| Overall length of lens (mm) | 271.7 |
| Net weight (kg) | 4.2 |
| Field of View (mm x mm) | |
| 1/1.8″ IMX178 (7.43×4.9) | 99.1×65.3 |
| 1/1.8″ IMX252/265 (7.1×5.3) | 94.7×70.7 |
