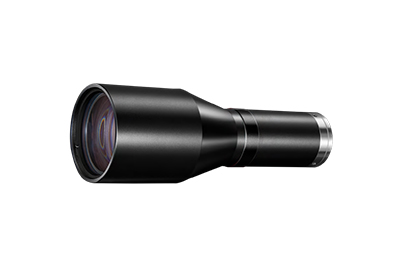

CK-SDTCM230-42
- Supports various C-mount industrial cameras from 1/2.5″~1.1″
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications
Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 42 |
| Magnification β(x) | 0.271 |
| Working distance (mm) | 118±3 |
| CCD size (Φmm) | 11.4(2/3″) |
| F/# | 4.9 |
| MTF30(lp/mm) | >185 |
| Depth of field (mm) | ±6.0@F11 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 259±3 |
| Mechanical parameters | |
| Camera Interface | C |
| Length of lens (mm) | 123.4 |
| Net weight (kg) | 0.4 |
| Field of View (mm x mm) | |
| 1/1.8″ EV76C570 (7.2×5.4) | 26.6×19.9 |
| 1/1.7″ IMX226 (7.5×5.6) | 27.7×20.7 |
| 2/3″ IMX250/264 (8.45×7.1) | 31.2×26.2 |
