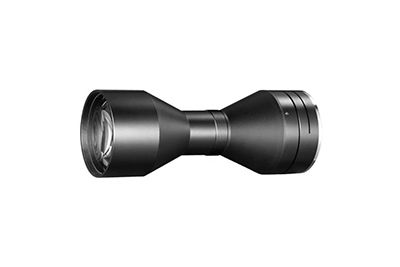

CK-SDTCM430-42-M58-AL
- A variety of combinations, and can achieve double rate, built-in coaxial light and other functions
- Large aperture, high telecentricity, ultra-low distortion, and large depth of field, meeting high-end system requirements
Specifications

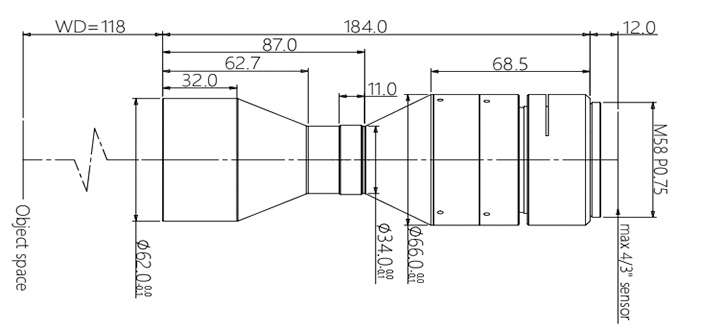

Dimensions
Downloads
| Optical parameters | |
| Field of View (Φ mm) | 42 |
| Magnification β(x) | 0.571 |
| Working distance (mm) | 118±3 |
| CCD size (Φmm) | 24(4/3″) |
| F/# | 9.4 |
| MTF30(lp/mm) | >90 |
| Depth of field (mm) | ±2.4@F20 |
| Image distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object distance I/O(mm) | 314±3 |
| Mechanical parameters | |
| Camera interface | M58 |
| Overall length of lens (mm) | 184.0 |
| Net weight (kg) | 0.9 |
| Field of View (mm x mm) | |
| 4/3″ KEYENCE 21M (17.86×14.32) | 31.3×25.1 |
| 4/3″ PYTHON 12K (18.43×13.82) | 32.3×24.2 |
| 4/3″ CMV8000 (18.48×13.73) | 32.4×24.0 |
