CK-SMFA230-S12
- High definition, high contrast, low distortion, excellent performance
- Each lens has been rigorously tested to ensure constant quality
Specifications

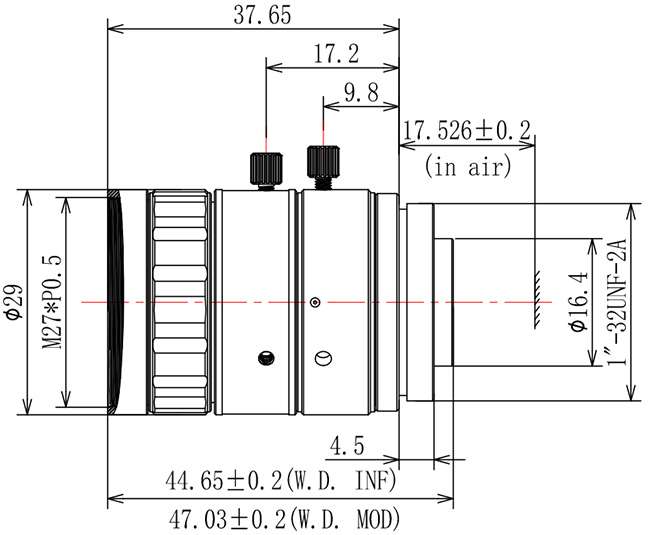

Dimensions
Downloads
| 2/3” F2.0/16 C-Mount | ||||
| Focal length | f=12mm | |||
| Aperture range | F=2.0~16 | |||
| Camera chip size | 1/1.8″ | 1/2″ | 2/3″ | |
| Field of view | H | 33.1° | 29.0° | 39.7° |
| V | 22.3° | 21.9° | 27.5° | |
| D | 39.7° | 35.8° | 48.1° | |
| TV distortion | <0.5% | |||
| Closest distance MOD | 0.11m | |||
| Maximum target size | Φ11.4mm | |||
| Filter thread size | M27xP0.5 | |||
| Interface | C-Mount | |||
