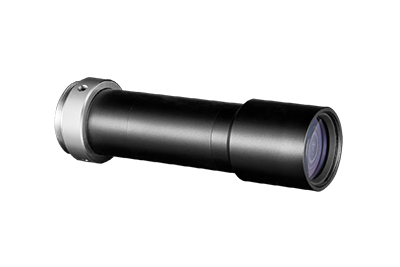

CK-SWWH40-110AT
- Equipped with variable light bar specifications to achieve the best balance between resolution and depth of field
- Widely used in high-precision visual positioning and other occasions
Specifications

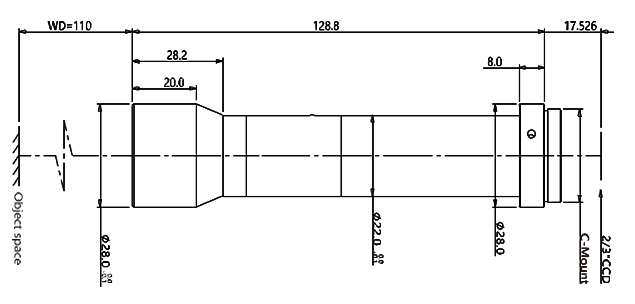

Dimensions
Downloads
| Optical parameters | |
| Magnification β (x) | 4.0 |
| Working distance (mm) | 110±2 |
| CCD size (Φmm) | 11(2/3″) |
| F/# | 25.6 |
| Telecentricity (% max) | <0.1 |
| Image distortion (° max) | <0.1 |
| Numerical aperture NA | 0.075 |
| Object resolution (um) | 4.5 |
| Object depth of field DoF (mm) | 0.1 |
| Mechanical parameters | |
| Camera interface | C |
| Total lens length (mm) | 128.8 |
| Whether coaxial light / Dimmable bar | No/No |
| Viewable range (mm x mm) | |
| 1/2″(6.4×4.8) | 1.6×1.2 |
| 1/1.8″(7.13×5.37) | 1.8×1.3 |
| 2/3″(8.8×6.6) | 2.2×1.7 |
