IR lights
CKVision non-standard/custom lights break the limits of standard solutions, providing tailored lighting solutions for your product inspection needs, precisely adapting to every industrial inspection scenario.
· Customizable · Intelligent Adaptation · High Efficiency & Durability

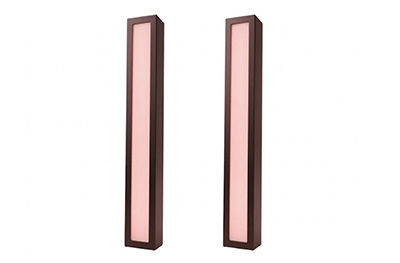

IR lights
The CK-HBL series linear light sources are industrial-grade high-performance light sources specially designed for machine vision applications. Adopting a linear arrangement of high-brightness LED beads, they can provide flexible and high-brightness lighting effects from multiple angles.
- Professional machine vision optical design: Equipped with high color rendering index LED beads with CRI ≥ 90, featuring high color reproduction and sharp contrast, which serves as a key guarantee for achieving high-precision defect detection and dimensional measurement.
- High Uniformity and Stability: Built-in reflective structure, matched with optional diffuser plate, can effectively eliminate light spots and achieve uniform light output.
- Industrial-grade reliability: Luminance drift is strictly controlled to ≤3% per 1000 operating hours.
- Excellent thermal management design: The housing is made of high thermal conductivity aviation aluminum alloy, providing high heat dissipation efficiency and ensuring stable optical performance during continuous operation of the light source.
- Customization Service: Light source wavelength and size can be customized.
This series is CK Vision’s custom series for special light sources,
supporting personalized customization according to customer requirements.
- Workpiece Dimension Measurement: Provides high-contrast edge profiles for precision metrology of mechanical parts, electronic components, and packaging items.
- Surface Defect Inspection: Suitable for detecting scratches, cracks, uneven coating and other defects on flat or slightly curved workpieces.
- Transparent Object Inspection: Capable of accurately identifying impurities, bubbles and surface damage inside transparent materials such as glass and plastic.
- Edge and Contour Inspection: Provides high-definition lighting to facilitate the identification of missing corners, burrs, deformations and other issues of workpieces in high-speed production lines.
- Character Recognition & Verification: Provides uniform illumination to ensure stable recognition of printed or laser-marked codes and characters on various substrates.
This series is CK Vision’s custom series for special light sources,
supporting personalized customization according to customer requirements.

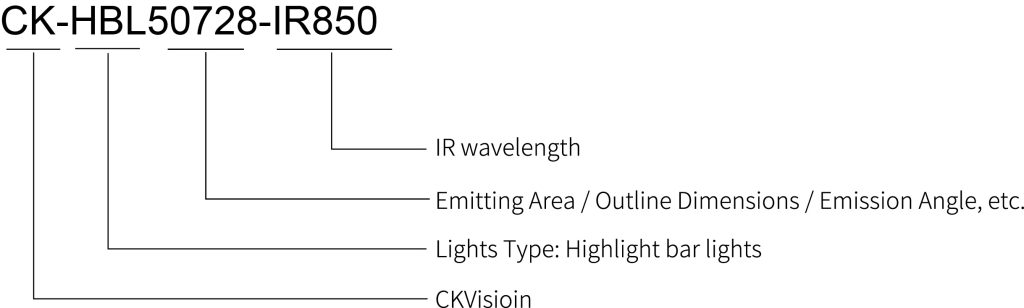

| Light Model | Light Color | Power (W) | Emission Size | Outer Diameter / Length (mm) | Inner Diameter / Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| CK-HBL50728-IR850 | 22W | 497X22 | 507 | 28 | 27 | |
| CK-HBL50738-IR850 | 28W | 497X32 | 507 | 38 | 27 |
