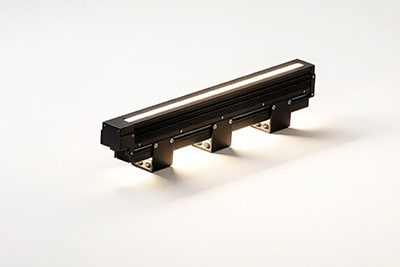

Line scan lights

For high-speed, high-precision line-scan inspection. High-power LEDs deliver high-brightness uniform linear illumination, with customizable line widths & wavelengths. Strobe sync perfectly matches line-scan cameras, boosting dynamic imaging clarity and defect detection accuracy for high-speed lines.

Features
Description

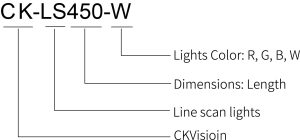

Diagram
Application
Examples
  • High Brightness & Uniformity: High-power LED beads + professional linear optical path design, featuring high uniformity of the linear light-emitting strip and a wide adjustable brightness range.
  • Strobe Synchronous Control: Supports strobe function and can achieve precise synchronization with line-scan cameras, making it suitable for high-speed line-scan inspection scenarios.
  • High-Speed Inspection Compatibility: Meets the continuous scanning requirements of high-speed production lines with no smearing, no strobing, and stable imaging performance.
  • Multiple Specifications Customization: Supports customization of line width, wavelength, brightness and mounting structure, compatible with various line-scan cameras and inspection stations.
  • Excellent Heat Dissipation: Integrated aviation-grade heat dissipation structure effectively dissipates heat, ensuring the stability of the light source during high-speed continuous operation.

This series is CK Vision’s custom series for special light sources,

supporting personalized customization according to customer requirements.

  • High-speed surface defect inspection, dimensional measurement and texture recognition for long-strip and web-type workpieces such as liquid crystal panels, films, paper, metal coils, PCBs and lithium battery electrode sheets.
  • Covers high-speed line-scan inspection requirements for industries including 3C electronics, new energy, printing, packaging, and metal processing.


This series is CK Vision’s custom series for special light sources,

supporting personalized customization according to customer requirements.

Light Model Light Color Power (W) Emission Size Outer Diameter / Length (mm) Inner Diameter / Width (mm) Height (mm)
CK-LS450-W 150w 450X45 495 49 94
